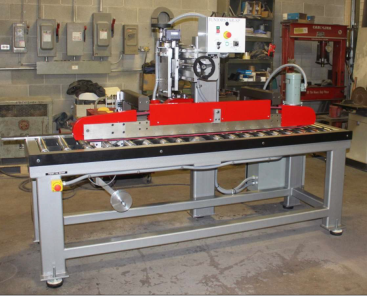

Star V JuniorStar-SP V Grooving Machine

Our entry level Continuous Duty Star V Groover model, the JuniorStar-SP is designed to enable the smaller solid surface fabricator to profit from the V grooving method and remain on budget.

The JuniorStar-SP is designed to v-groove various materials such as composite, PVC, solid surfaces, veneers, laminates, phenolics, solid wood and more.

Creating a V-fold edge, instead of building up the front edge, or a cove back splash profile, the v-groove is being applied from above, simultaneously taping from below, with the workpiece moving thought the machine automatically. Both linear and crosscuts up to 15” away from the fixed fence are possible. (Set-up controls are manual)

Machine Dimensions:108”x40”x72”

Service Connection Requirements: Voltage as Required (3ph), 60Psi Air, 197CFM @ 3” Dust Port

Features of JuniorStar-SP Narrowest board: V Groove Center from Fence + 3.5” Widest / Longest Board: Unlimited Shortest Board: 18” Thinnest Board 1/4" Thickest Board 1 3/16” (1) 10 HP – 3,600 RPM Cutter Motor 30mm x 72mm Cutter Motor Shaft with 8mm Keyway (1) Built In Automatic Tape Applicator 9-1/4 Cutter Head Diameter 10” Maximum Cut from Fixed Fence. Feeder Double Belt With Variable DC Motor Feed Drive 0-50 fpm. Stainless Steel Roller Bed 6” Solid Aluminum Reference Roller on Cutting Area. Cutter Depth Movements via Hand Wheel, on Linear Bearings and Rails, ACME Nut and Rod, Position on Digital Indicator Cutter side Movement via Hand Wheel, on Linear Bearings and Rails, Ball Screw and Nut Cutter Position feedback on Proscale DRO System Tubular welded Frame Construction.

2 Year Warranty Star V Machinery

Customer Satisfaction Guarantee.
