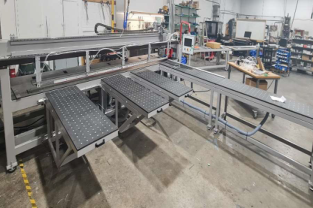

Star V SCG Cross V Grooving Machine

The SCG Cross V Groover model line is the ultimate V grooving solution for cabinets, drawers, speaker, other enclosures, and columns.

Priced from $33,998 USD - $87,698 USD depending on size and upgrades

SCG Machines typically are used to make any number of case products, where you are wrapping around and back to itself, by making multiple V grooves to make a box. Other traditional solid surface fabrication or millwork can also be performed as the SCG models are the most versatile machines for V grooving on the market. Machine cut strokes from 24” to 170” are available

Creating a drawer can be done quickly by cutting 5 standard or lock miter V grooves and folding the workpiece into a box shape. Countertop edges, cove back splash profiles, and many other types of grooves can be cut with very high precision since the workpiece is held stationary during the cutting process. A servo driven rear indexer sets the distance from the edge to the groove center on a large touch screen panel. A standard cross tape station either built in or standalone is also provided to allow for quick tape application to the workpiece.

Optional upgrades such as: longer stroke rear indexer, additional front indexer, floating support tables, air conveyor table surfaces, vacuum hold down system and more are all options that can complete these machines.

Machine Dimensions:74”x120”x72” up to 220”x220”x72”

Service Connection Requirements: Voltage as Required (3ph), 100Psi Air, 197CFM @ 3” Dust Port Narrowest Board: V Groove Center from Fence + 3” Widest / Longest Board: 24”-170” Depending on Model Cut Stroke Shortest Board: 4” Thinnest Board 1/32" Thickest Board 1 3/16” (1) 10 HP – 3,600 RPM Cutter Motors Ø 30mm x 72mm Cutter Motor Shaft with Clamping 8mm Keyway (1) Automatic Cross Tape Station, Position Control and Feed Back on 10” Touchscreen Panel 9-1/4 Cutter Head Diameter Servo Controlled Indexing Rear Fence from 24” Stroke to 170” Stroke Depending on Model and Upgrades Cut Speed Variable Servo Drive 0-50 fpm. Precision Machined Phenolic Table Precision Machined Phenolic Cutting Table Pneumatic Hold Down System Cutter Depth Movements via Hand Wheel, on Linear Bearings and Rails, ACME Nut and Rod, Position on Digital Indicator Cutter side Movement via Servo, on Linear Bearings and Rails, Ball Screw and Nut, Cutter Control and Speed on 10” Touchscreen Panel. Tubular Welded Frame Construction.

2 Year Warranty Star V Machinery Customer Satisfaction Guarantee.
