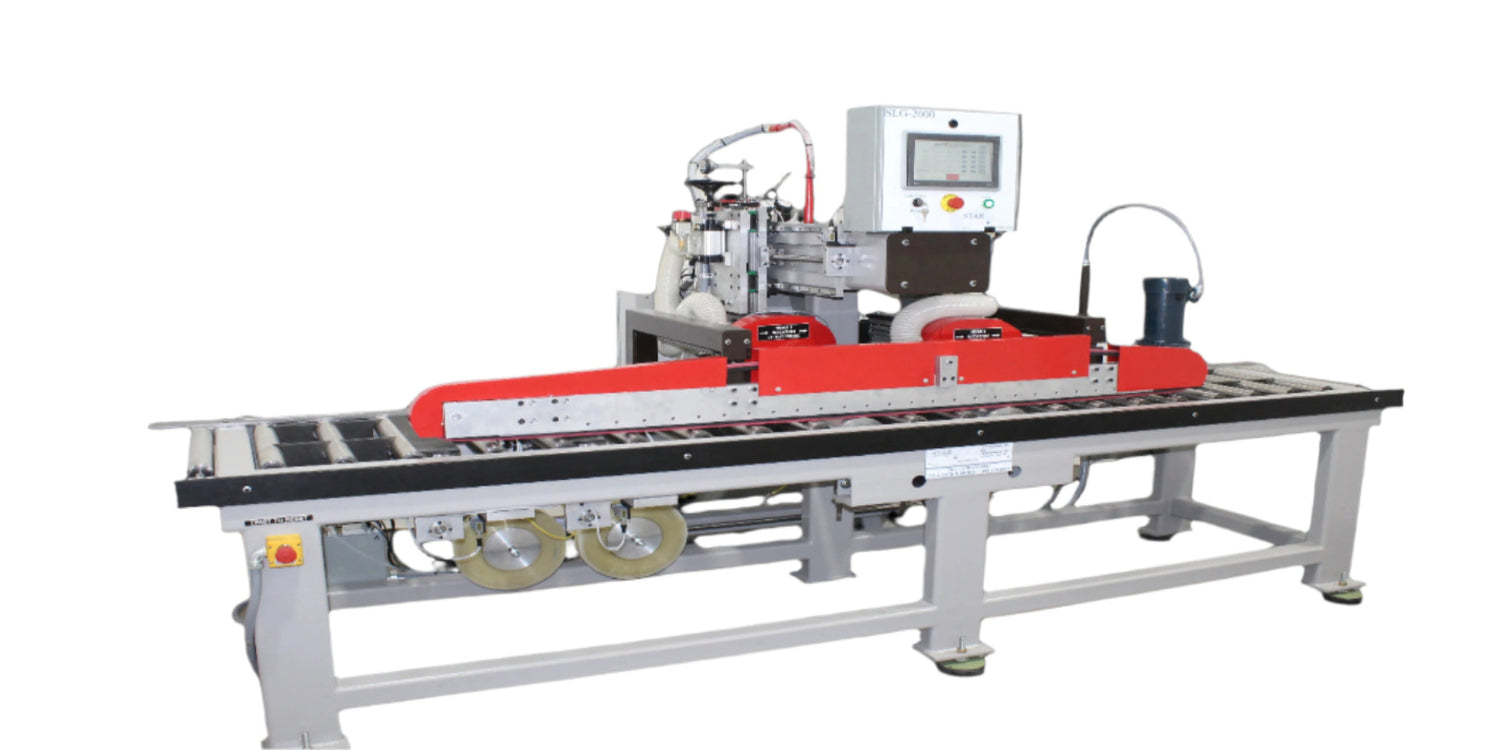

Star V SLG-2000 V-grooving machine photographed in official specification sheet
Product image 2 in product template.
Star V SLG 2000 V-grooving machine with background removed
Product image 3 in product template.
Product image 4 in product template.
Star V SLG-2000 dual-head V-grooving machine with roller feed bed and touchscreen control
Product image 5 in product template.

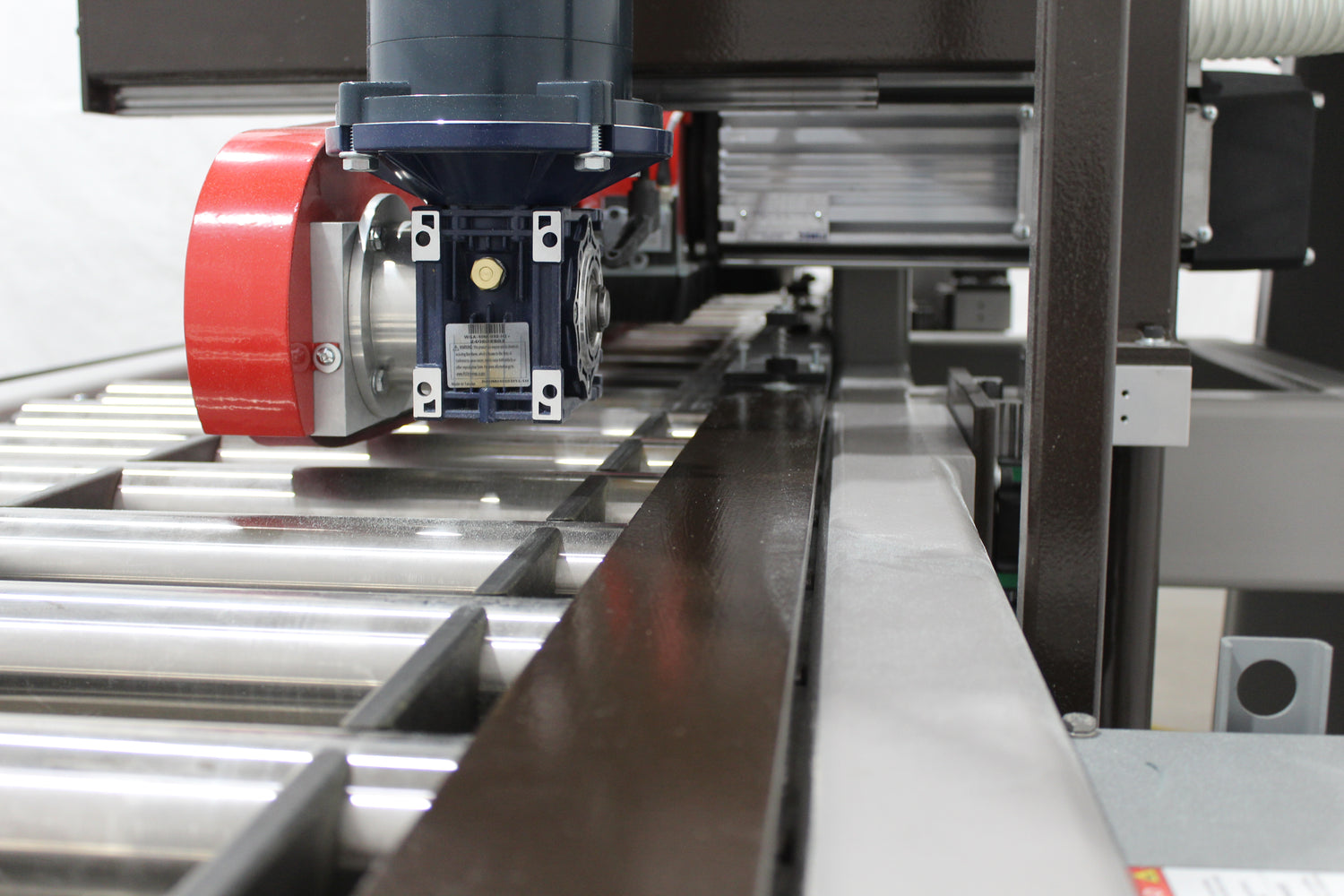

Star V SLG-2000 feed rollers and cutter drive assembly
Product image 6 in product template.

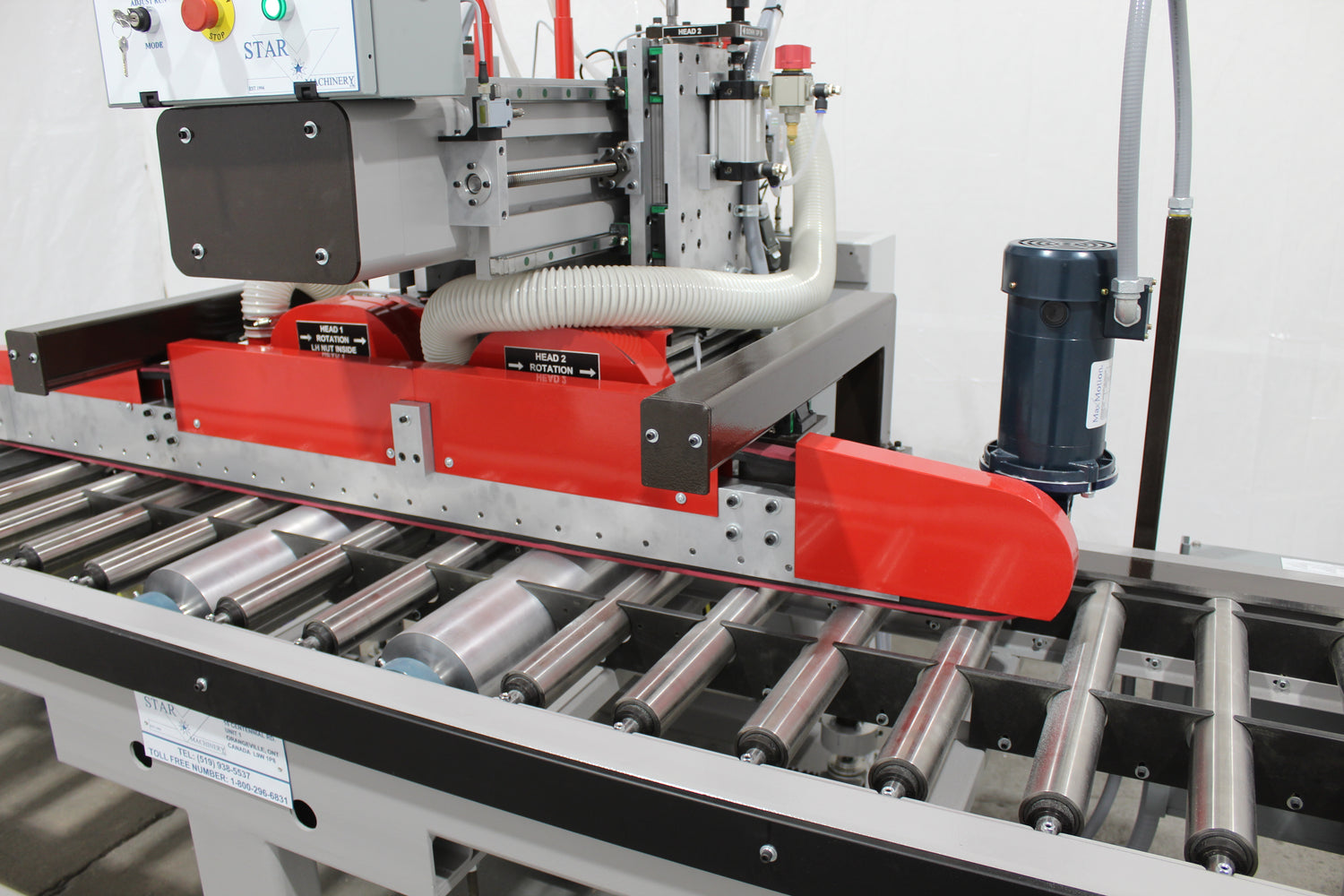

Star V SLG-2000 cutter drive beside the roller feed bed
Product image 7 in product template.

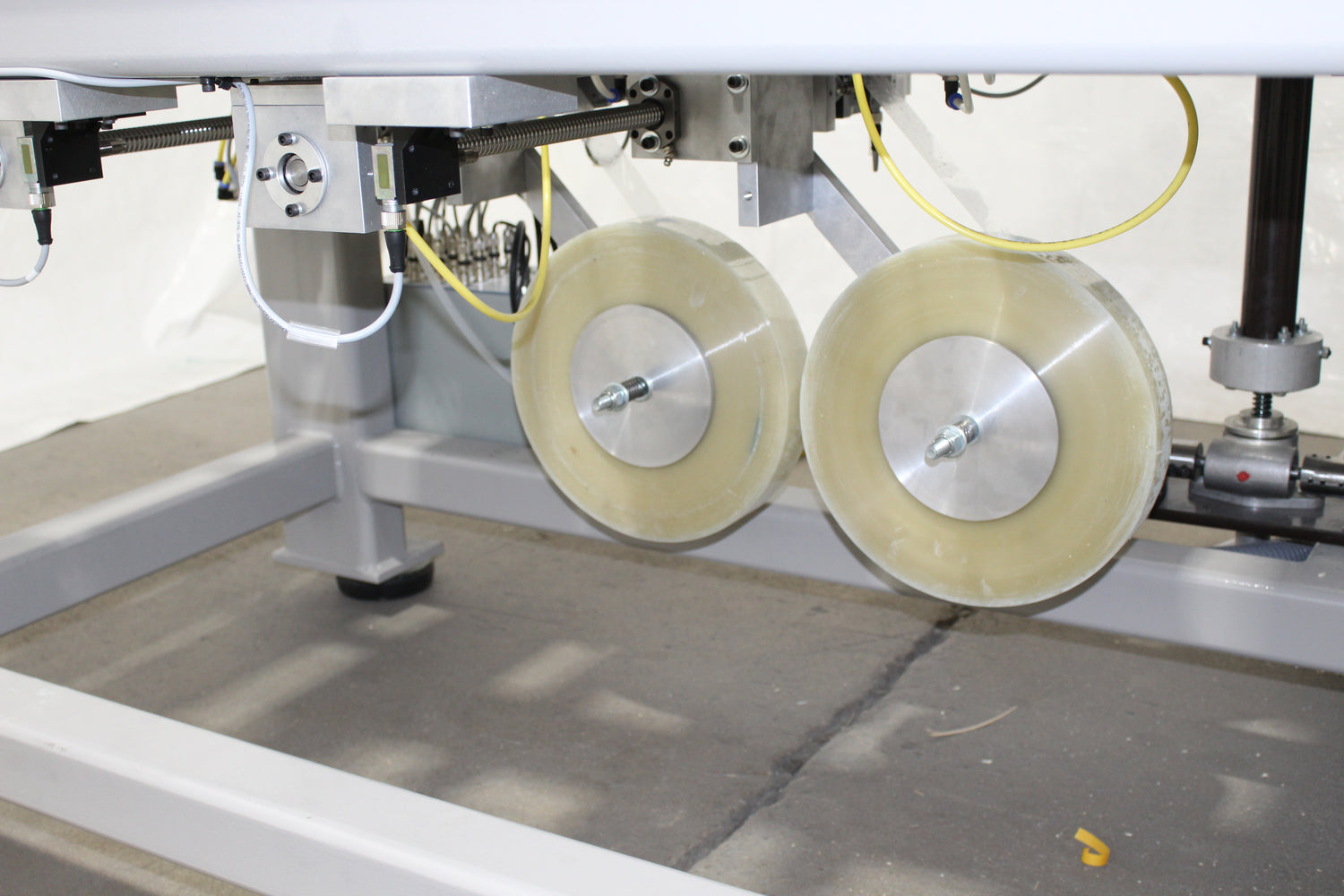

Star V SLG-2000 dual automatic tape applicators beneath the bed
Product image 8 in product template.

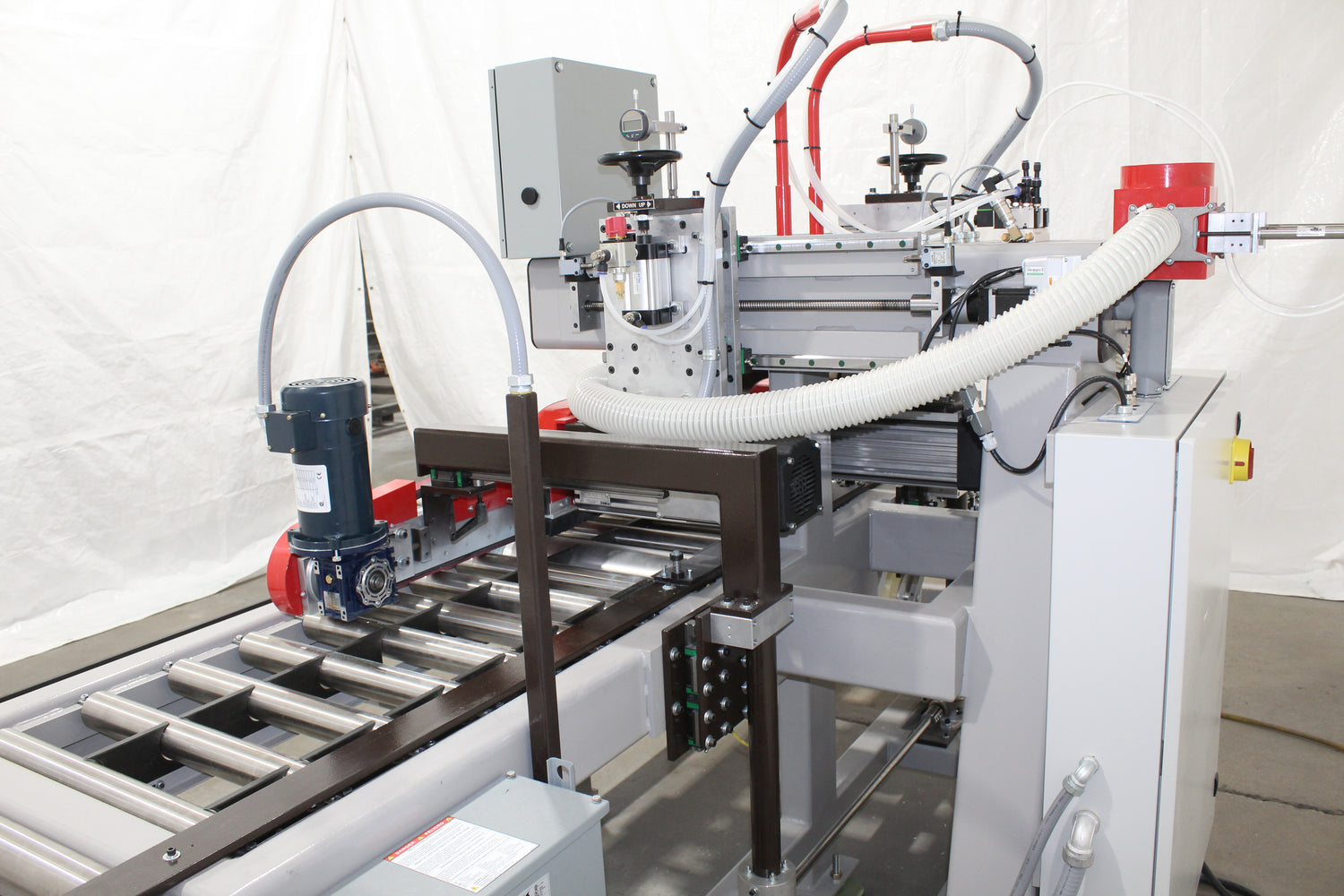

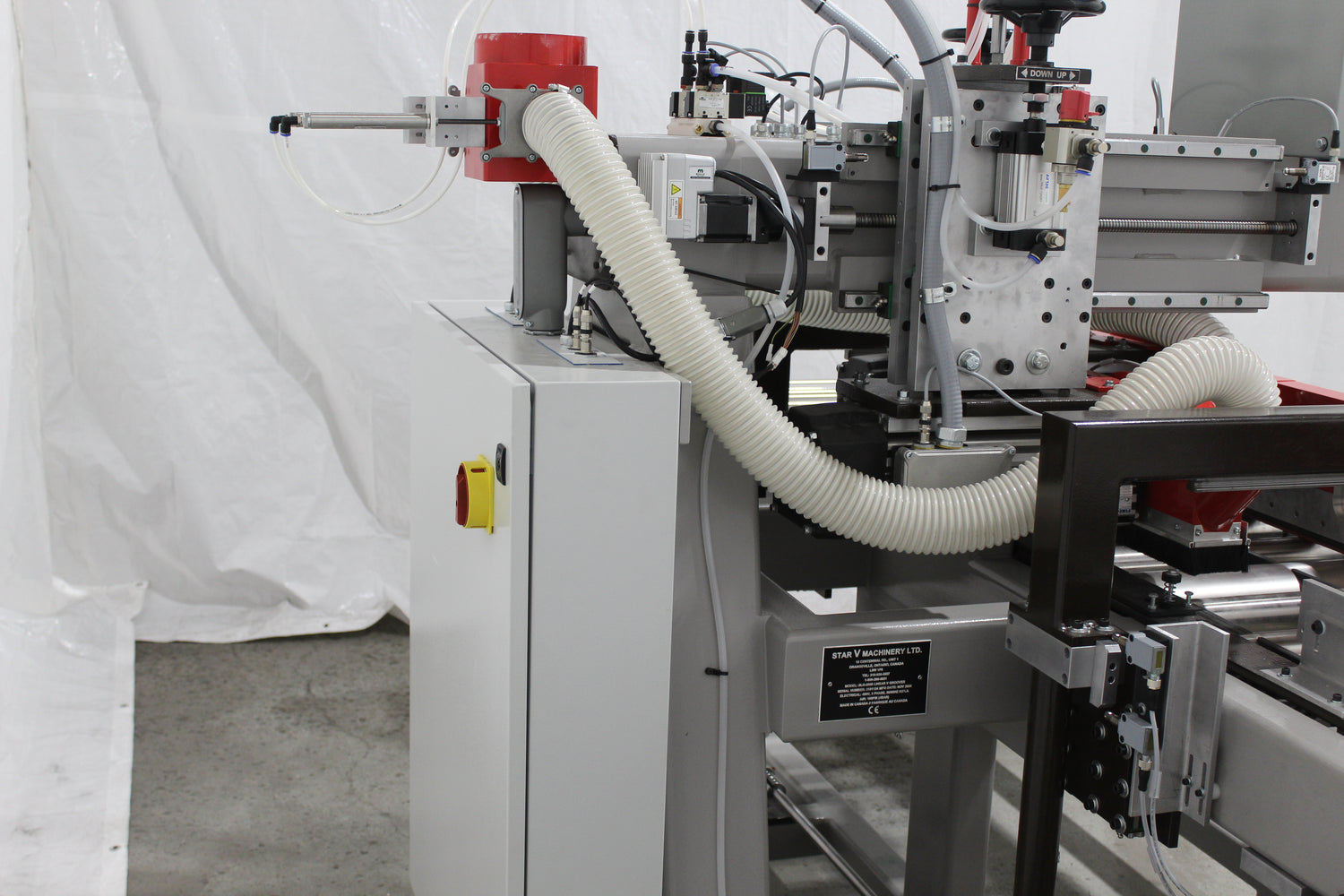

Rear view of Star V SLG-2000 cutter assembly and extraction hoses
Product image 9 in product template.
Star V SLG-2000 dual cutting stations above the roller bed
Product image 10 in product template.

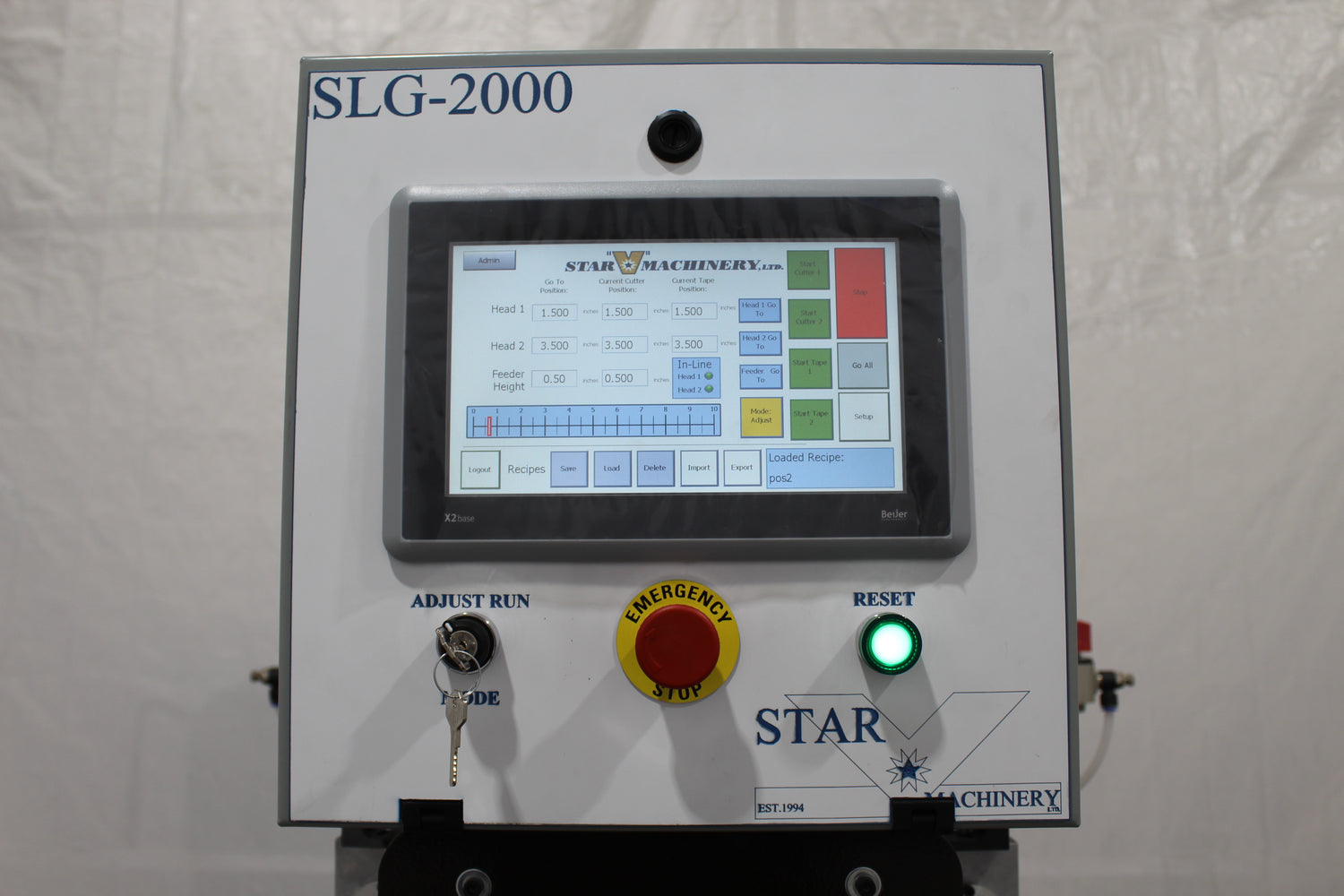

Star V SLG-2000 touchscreen panel with emergency stop and operator controls
Product image 11 in product template.

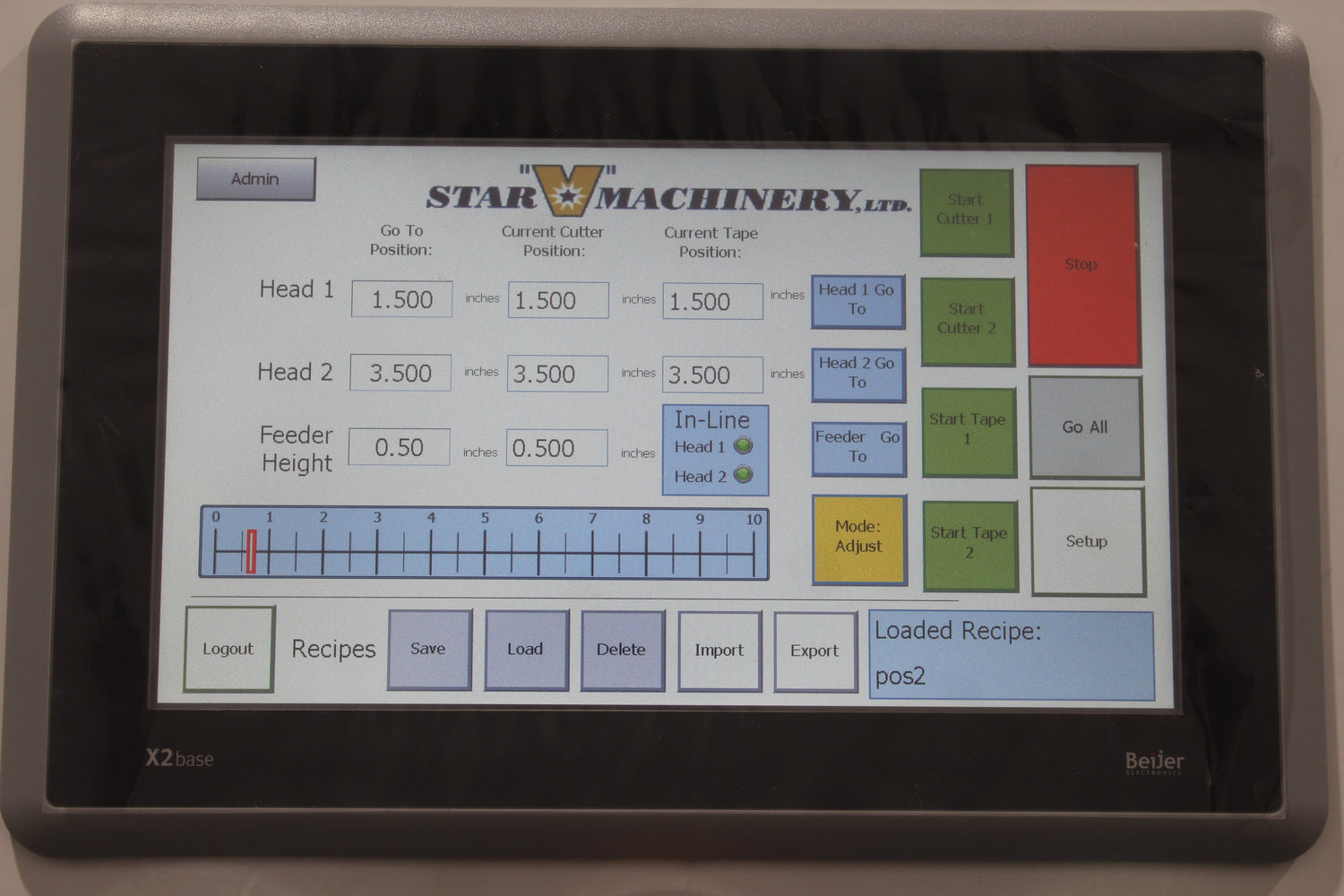

Star V touchscreen interface showing cutter-position controls
Product image 12 in product template.

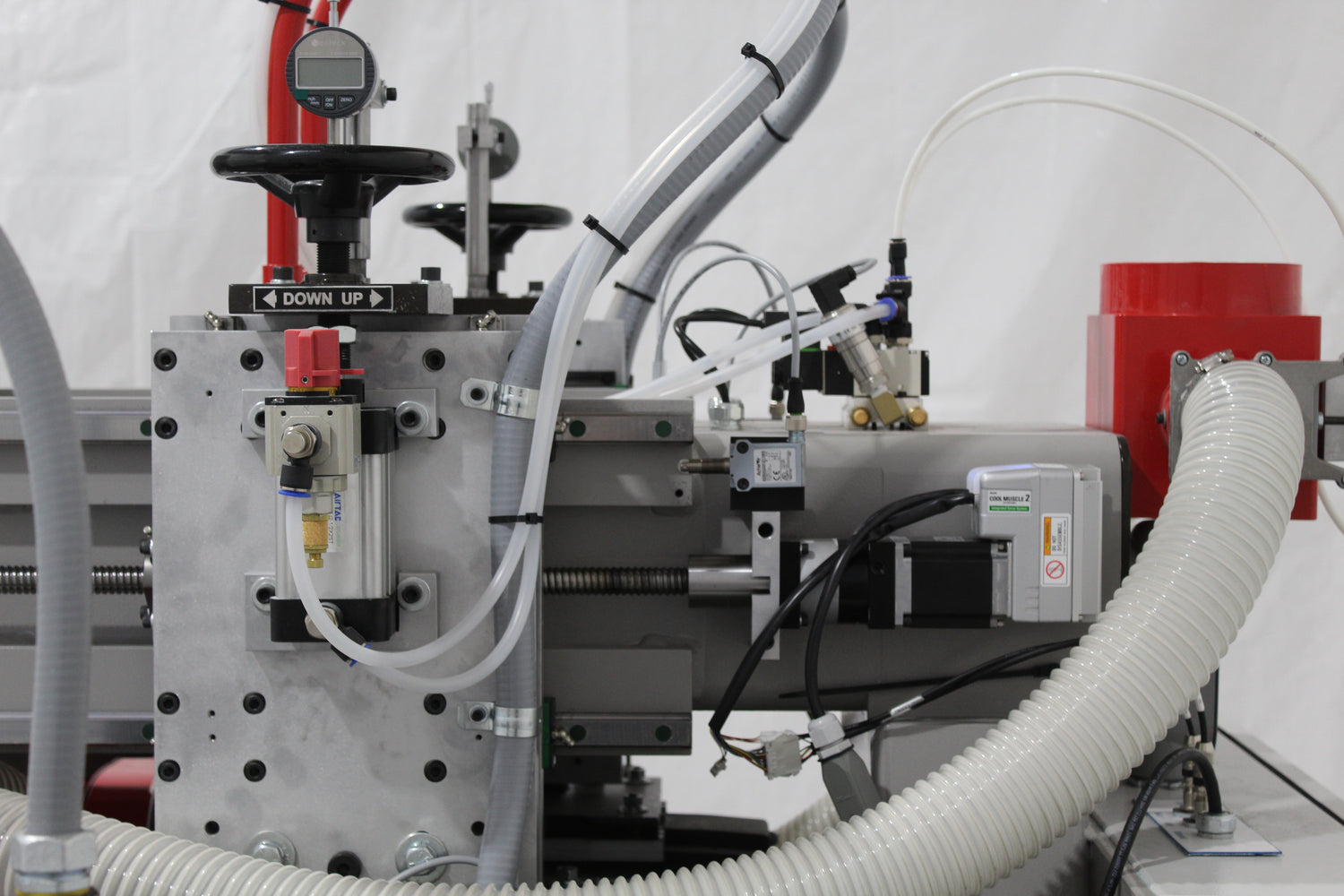

Star V SLG-2000 hand-wheel adjustment and cutter-position assembly
Product image 13 in product template.

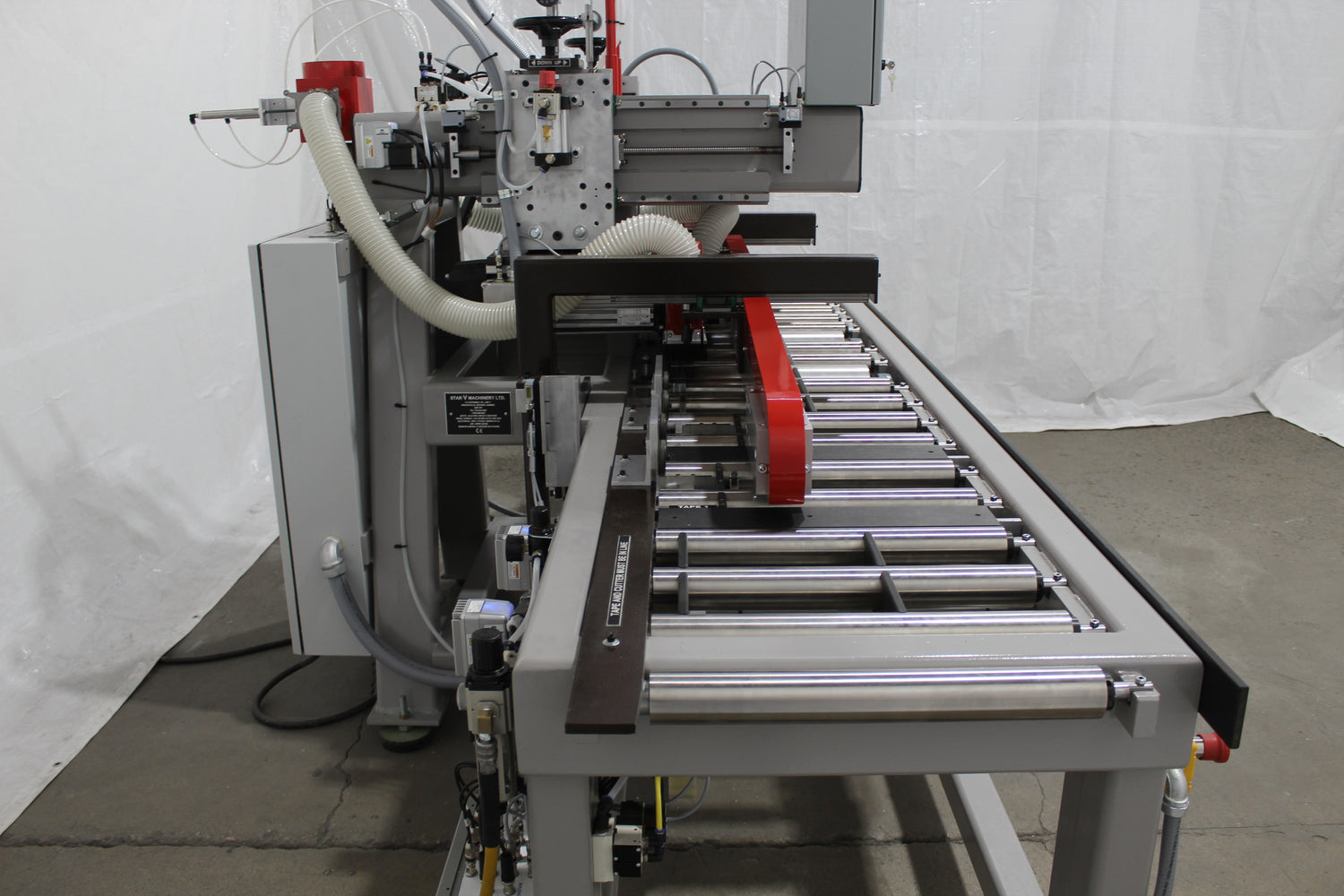

End view of Star V SLG-2000 roller feed bed
Product image 14 in product template.
Star V SLG-2000 cutting assemblies viewed from the rear
Product image 15 in product template.
Two automatic tape applicators on the Star V SLG-2000
Product image 16 in product template.

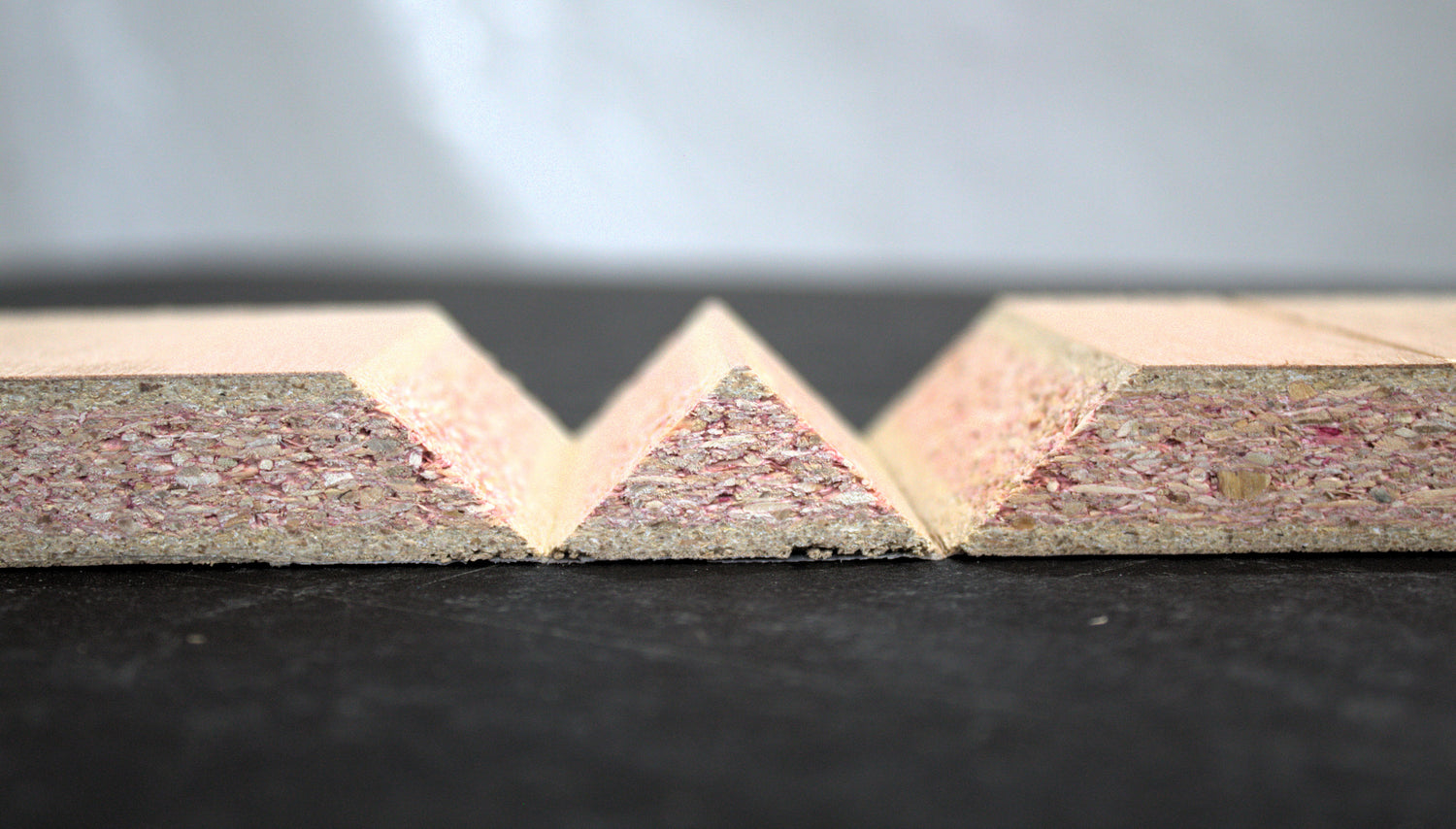

Two V-grooves in a panel prepared for folding
Product image 17 in product template.

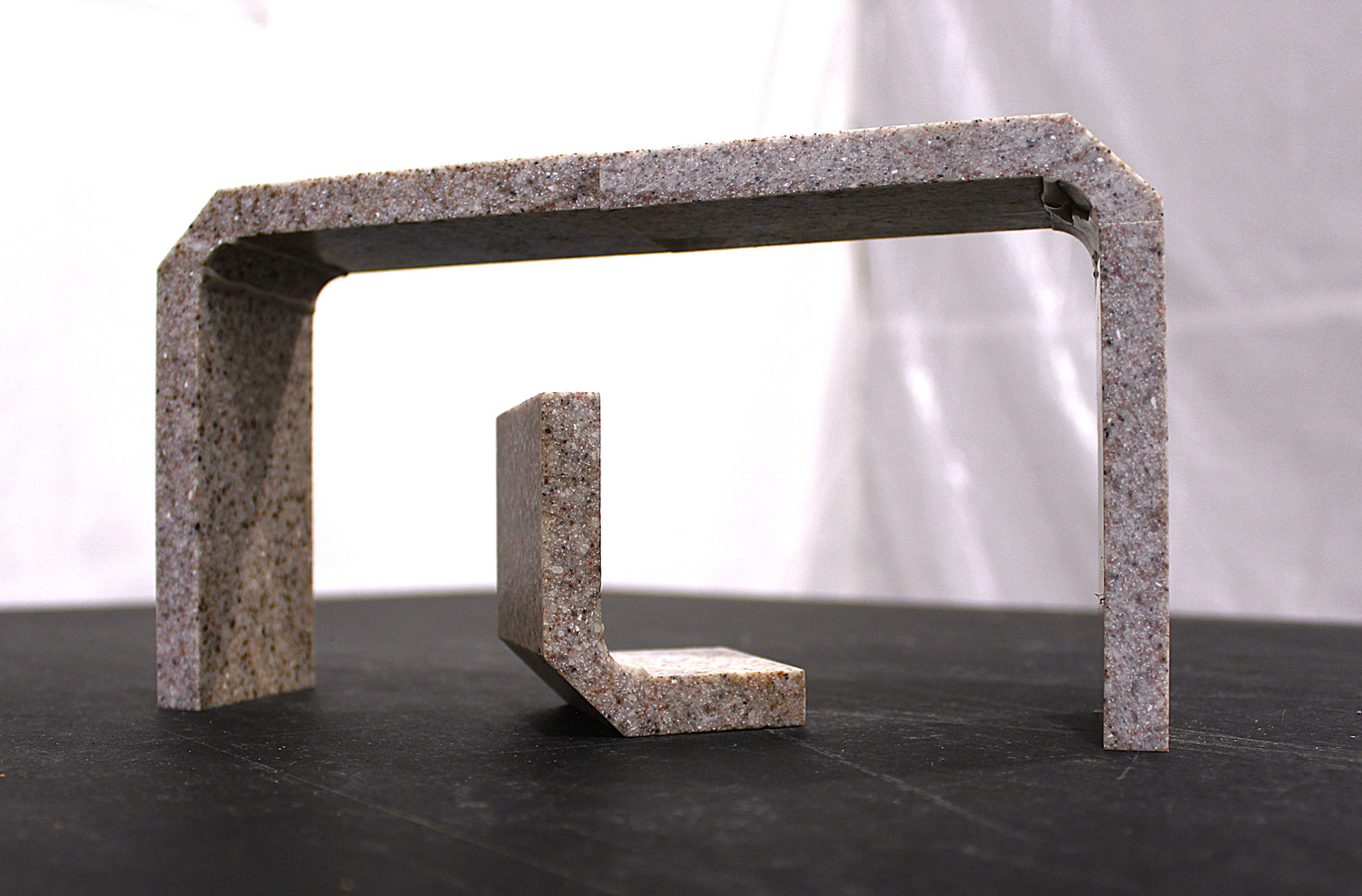

Folded countertop-edge and corner-profile samples
Product image 18 in product template.

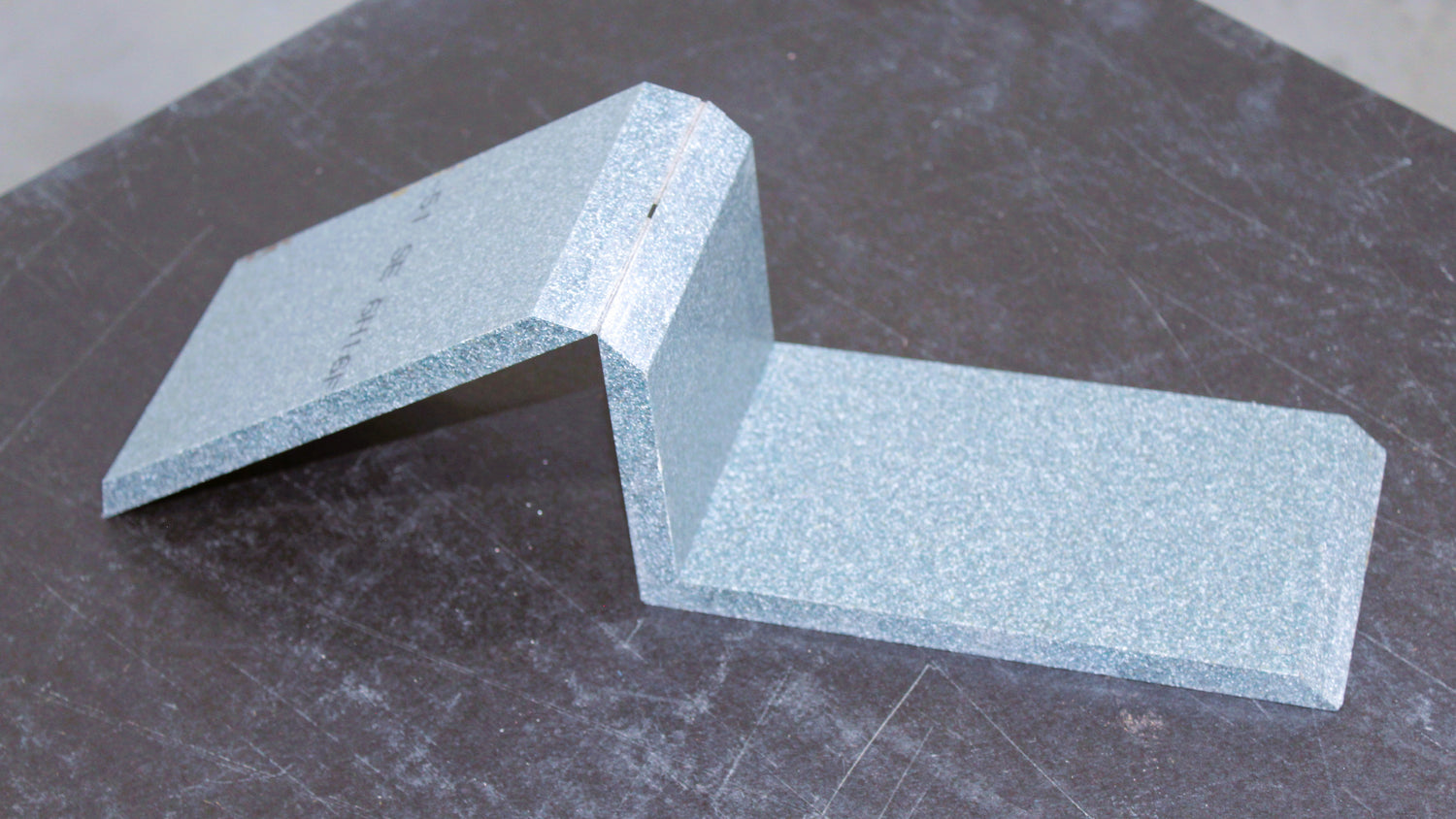

Three-sided folded solid-surface profile

Star V SLG-2000 Fully Automatic Dual-Head V-Grooving Machine

Regular price $108,793.00 USD
Regular price Sale price $108,793.00 USD

Two tape applicators and two cutter heads, with automatic servo-driven adjustment.

Solid surface manufacturers

Making solid surface drop edges or cove backsplashes? Tape is automatically applied to the bottom of the sheet before V-grooves or miter cuts are made in the top. The tape holds the pieces together during folding and gluing, helping reduce separate preparation and handling steps. Ask about a one-pass cove cut with special cove tooling; we’ll confirm the setup for this model and your material.

Kitchen, cabinet and architectural millwork shops

For kitchen manufacturers, cabinet shops and architectural millwork: discuss miter folds for column wraps, buildups and floating shelves. We’ll match the tooling and groove direction to your finished profile.

See how taping, grooving and folding work

Explore V-grooving applications

Explore production savings and payback

On this page: Applications · Tape & fold process · Specifications · Request a quote

Browse all V-grooving machines

The Star V SLG-2000 is a dual-head V-grooving machine for solid surface countertop manufacturers and cabinet and architectural millwork shops. Two cutting heads, two automatic tape applicators and servo-controlled positioning support repeatable setups for drop edges, cove profiles and miter-folded components.

How taping and folding work

With the sheet positioned for machining, tape is automatically applied to its bottom before the cuts are made. V-grooves or miter cuts are machined into the top of the sheet, leaving the tape intact underneath. The tape acts as a hinge and holds the pieces together during folding and gluing.

What is automated? Servo positioning, powered feed and automatic tape application support machine setup and processing. Cutter-depth adjustment is manual. Gluing and folding are separate assembly steps after machining.

Repeatable setups for changing profiles

  • Servo-controlled positioning with feedback on a 10-inch touchscreen.
  • Storage for 1,000+ jobs supports recurring profiles and repeated setups.
  • Hand-wheel cutter-depth adjustment lets the operator set the cut depth for the application.
  • Two 10 HP cutter motors and two tape stations support dual-head production configurations.

Applications for your production shop

For solid surface countertop manufacturing, discuss drop edges and one-pass cove backsplash cuts with special cove tooling. Confirm the head arrangement and tooling for your finished profile.

For cabinet and architectural millwork production, evaluate miter folds for floating shelves, column wraps and buildups. Match the material, groove direction and support requirements to the part.

Key specifications

  • Cutting system: Two 10 HP motors at 3,600 RPM; 9-1/4-inch cutter-head diameter.
  • Feed: Double belt with variable DC drive, 0–50 FPM.
  • Cut position from fixed fence: 1/4–15 inches on the listed configuration.
  • Workpiece thickness: 1/4–1 3/16 inches; minimum board length 20 inches.
  • Construction: Stainless steel roller bed and tubular welded frame.
  • Approximate dimensions and weight: 138 × 63 × 72 inches (L × W × H); 3,400 lbs.
  • Electrical: 208 or 460V, 3 phase; typical amperage 460V: 63A / 208V: 99A.
  • Air and dust extraction: 100 PSI; 785 CFM at a 6-inch port.
  • Listed warranty: 2 years; confirm applicable terms with your quote.

Configuration and machine selection

Ask about 25-, 30-, 36- and 40-inch throat options and custom automation solutions. Cutter heads for V-groove, cove, lock-miter and combination profiles are sold separately; confirm the tooling required for your part.

Download the SLG-2000 specification sheet (PDF). Compare the Star V V-grooving machine range or compare the semi-automatic SLG 2-LB.

Request a quote or demonstration: Call 678-925-3556 or email Star V USA. Include your material, thickness, finished profile, production volume and available electrical service so we can discuss a suitable configuration.

*Specifications are for general reference, are subject to change and may vary by configuration. Confirm exact dimensions, electrical service, compressed air, dust collection, tooling and installation requirements with Star V Machinery before purchase or site preparation.

Talk with Star V USA

Request information on Star V SLG-2000 Fully Automatic Dual-Head V-Grooving Machine

Tell us about your material, application and production goals. Your machine is selected below; you can change it if needed.

Call 678-925-3556
Email Star V USA

Loading your machine inquiry form…

STAR V SPECIFICATION SHEET DATA

SLG-2000 Technical Specifications

Star V SLG-2000 machine from official specification sheet
Cutter heads
Dual, servo-positioned
Cutter motors
(2) 10 HP at 3,600 RPM
Cutter diameter
9-1/4 in
Feed system
Double belt, variable DC drive
Feed speed
0–50 FPM
Tape application
Two automatic applicators
Positioning
Servo / 10 in touchscreen; 1,000+ stored jobs
Cut from fixed fence
1/4–15 in
Minimum board length
20 in
Board thickness
1/4–1 3/16 in
Dimensions (approx.)
138 × 63 × 72 in
Weight (approx.)
3,400 lbs
Electrical
208 or 460V, 3 phase
Typical amperage
460V: 63A / 208V: 99A
Compressed air
100 PSI
Dust extraction
785 CFM at 6 in port
Listed warranty
2 years; confirm terms with your quote

Specifications shown are for general reference and subject to change. Exact machine dimensions, electrical/power requirements, compressed air requirements, dust collection requirements and other specifications may vary by machine configuration. Confirm all requirements for your specific machine with Star V Machinery before purchase, site preparation and installation.
