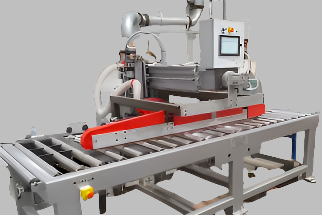

Star V SLG-1000 V-grooving machine photographed in official specification sheet
Product image 2 in product template.
Star V SLG 1000 V-grooving machine
Product image 3 in product template.
Star V SLG-1000 single-head V-grooving machine with touchscreen control
Product image 4 in product template.

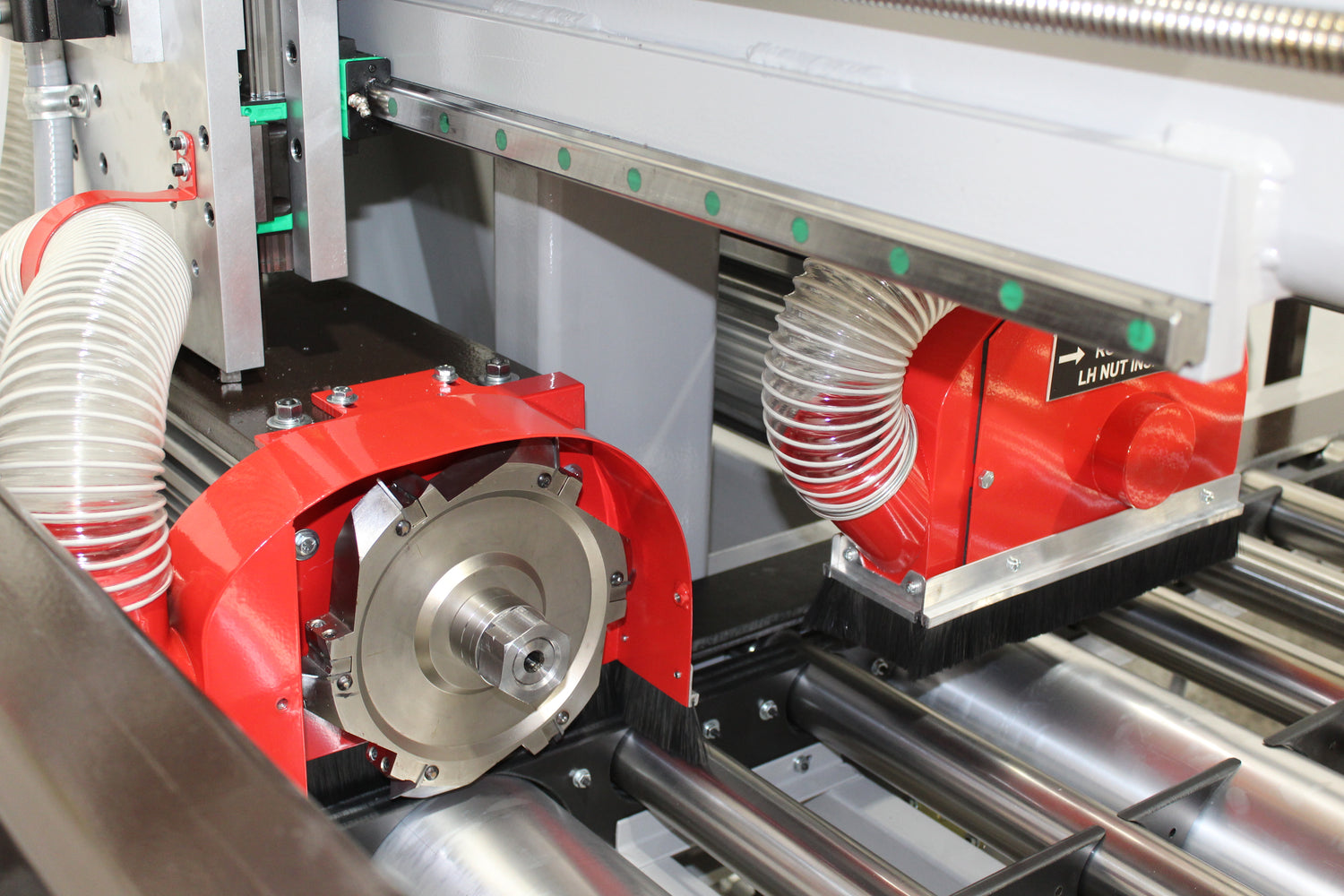

Star V dual cutter assembly with open guards and dust-extraction hoses
Product image 5 in product template.

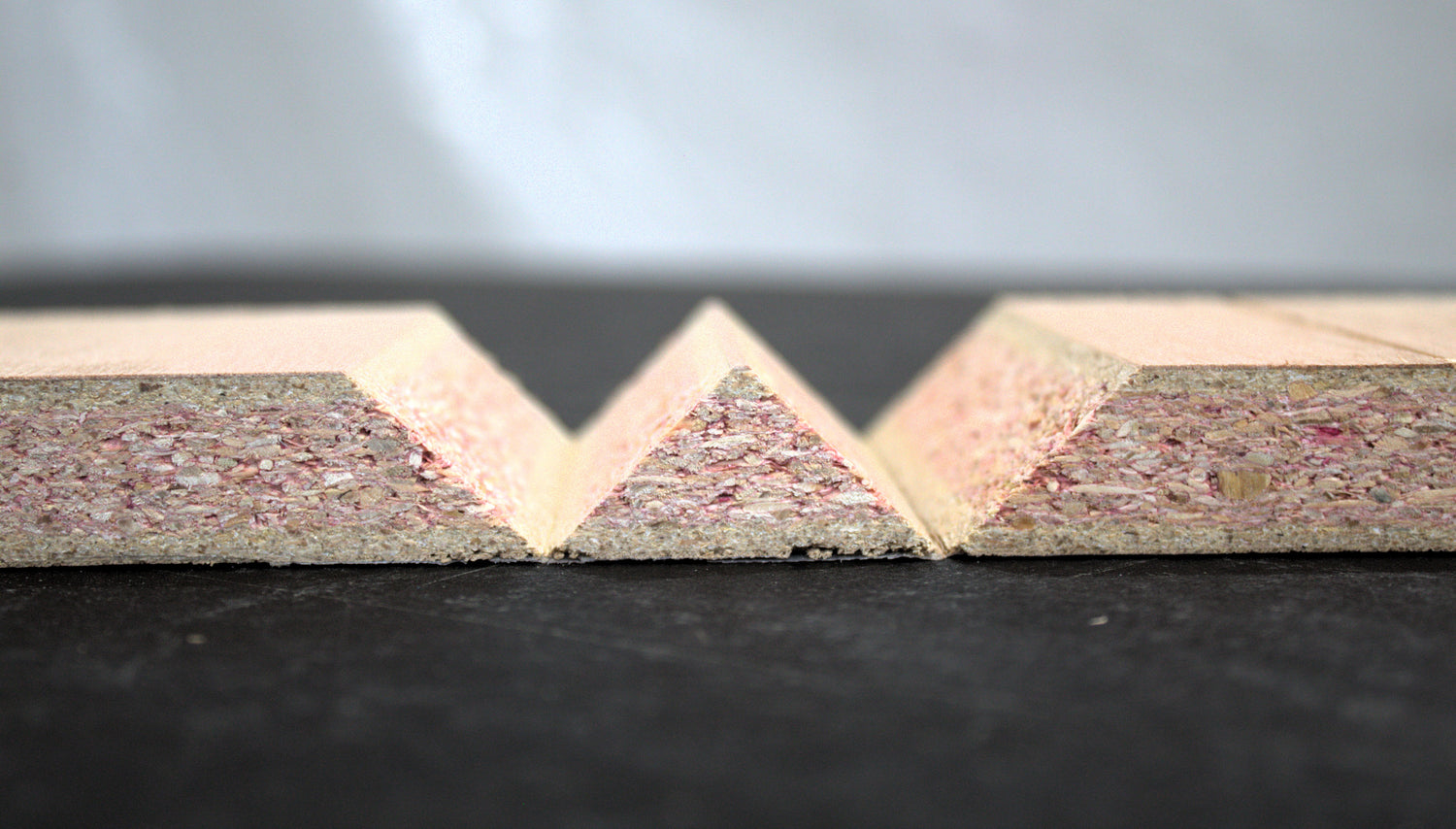

Two V-grooves in a panel prepared for folding
Product image 6 in product template.

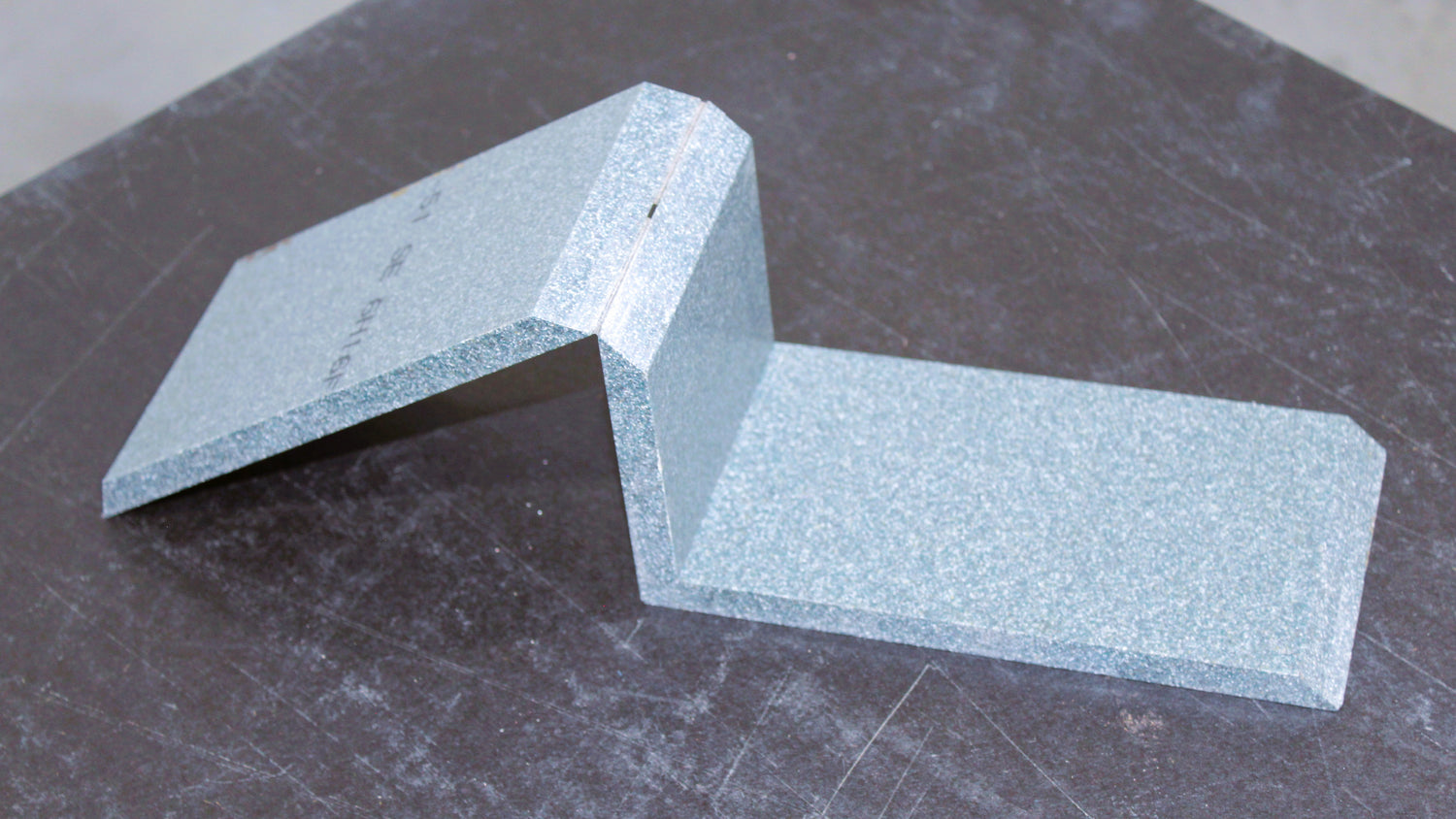

Three-sided folded solid-surface profile
Product image 7 in product template.
Star V touchscreen interface showing cutter-position controls

Star V SLG-1000 Fully Automatic Single-Head V-Grooving Machine

Regular price $83,998.00 USD
Regular price Sale price $83,998.00 USD

Single tape applicator and single cutter head, with automatic servo-driven adjustment.

Solid surface manufacturers

Making solid surface drop edges or cove backsplashes? Tape is automatically applied to the bottom of the sheet before V-grooves or miter cuts are made in the top. The tape holds the pieces together during folding and gluing, helping reduce separate preparation and handling steps. Ask about a one-pass cove cut with special cove tooling; we’ll confirm the setup for this model and your material.

Kitchen, cabinet and architectural millwork shops

For kitchen manufacturers, cabinet shops and architectural millwork: discuss miter folds for column wraps, buildups and floating shelves. We’ll match the tooling and groove direction to your finished profile.

See how taping, grooving and folding work

Explore V-grooving applications

Explore production savings and payback

On this page: Applications · Tape & fold process · Specifications · Request a quote

Browse all V-grooving machines

The Star V SLG-1000 is a single-head V-grooving machine for solid surface countertop fabricators and cabinet and millwork manufacturers that change profiles throughout the production day. Servo-controlled positioning, a 10-inch touchscreen and storage for more than 1,000 jobs help operators save and recall settings for repeat work.

How taping and folding work

With the sheet positioned for machining, tape is automatically applied to its bottom before the cuts are made. V-grooves or miter cuts are machined into the top of the sheet, leaving the tape intact underneath. The tape acts as a hinge and holds the pieces together during folding and gluing.

What is automated? Servo positioning, powered feed and automatic tape application support machine setup and processing. Cutter-depth adjustment is manual. Gluing and folding are separate assembly steps after machining.

Repeatable setups for changing profiles

  • Servo-controlled positioning with feedback on a 10-inch touchscreen.
  • Storage for 1,000+ jobs supports recurring profiles and repeated setups.
  • Hand-wheel cutter-depth adjustment lets the operator set the cut depth for the application.
  • One 10 HP cutter motor and one automatic tape applicator support single-head production.

Applications for your production shop

Solid surface countertop manufacturers can discuss drop edges and cove backsplash profiles with the appropriate tooling. See the solid surface V-grooving guide, including pre-taping and special one-pass cove tooling.

For recurring cabinet and millwork parts, saved positioning settings support repeat setups. Review miter-folded shelves, column wraps and buildups; confirm material compatibility, groove direction and tooling for each profile.

Key specifications

  • Cutting system: One 10 HP motor at 3,600 RPM; 9-1/4-inch cutter-head diameter.
  • Feed: Double belt with variable DC drive, 0–50 FPM.
  • Cut position from fixed fence: 1/4–15 inches on the listed configuration.
  • Workpiece thickness: 1/4–1 3/16 inches; minimum board length 20 inches.
  • Construction: Stainless steel roller bed and tubular welded frame.
  • Approximate dimensions and weight: 138 × 63 × 72 inches (L × W × H); 2,800 lbs.
  • Electrical: 208 or 460V, 3 phase; typical amperage 460V: 50A / 208V: 54A.
  • Air and dust extraction: 100 PSI; 785 CFM at a 6-inch port.
  • Listed warranty: 2 years; confirm applicable terms with your quote.

Configuration and machine selection

Ask about 25-, 30-, 36- and 40-inch throat options and custom automation solutions. Cutter heads for V-groove, cove, lock-miter and combination profiles are sold separately; confirm the tooling required for your part.

Download the SLG-1000 specification sheet (PDF). Compare the Star V V-grooving machine range or compare the dual-head SLG-2000.

Request a quote or demonstration: Call 678-925-3556 or email Star V USA. Include your material, thickness, finished profile, production volume and available electrical service so we can discuss a suitable configuration.

*Specifications are for general reference, are subject to change and may vary by configuration. Confirm exact dimensions, electrical service, compressed air, dust collection, tooling and installation requirements with Star V Machinery before purchase or site preparation.

Talk with Star V USA

Request information on Star V SLG-1000 Fully Automatic Single-Head V-Grooving Machine

Tell us about your material, application and production goals. Your machine is selected below; you can change it if needed.

Call 678-925-3556
Email Star V USA

Loading your machine inquiry form…

STAR V SPECIFICATION SHEET DATA

SLG-1000 Technical Specifications

Star V SLG-1000 machine from official specification sheet
Cutter heads
Single, servo-positioned
Cutter motors
10 HP at 3,600 RPM
Cutter diameter
9-1/4 in
Feed system
Double belt, variable DC drive
Feed speed
0–50 FPM
Tape application
Single automatic
Positioning
Servo / 10 in touchscreen; 1,000+ stored jobs
Cut from fixed fence
1/4–15 in
Minimum board length
20 in
Board thickness
1/4–1 3/16 in
Dimensions (approx.)
138 × 63 × 72 in
Weight (approx.)
2,800 lbs
Electrical
208 or 460V, 3 phase
Typical amperage
460V: 50A / 208V: 54A
Compressed air
100 PSI
Dust extraction
785 CFM at 6 in port
Listed warranty
2 years; confirm terms with your quote

Specifications shown are for general reference and subject to change. Exact machine dimensions, electrical/power requirements, compressed air requirements, dust collection requirements and other specifications may vary by machine configuration. Confirm all requirements for your specific machine with Star V Machinery before purchase, site preparation and installation.
