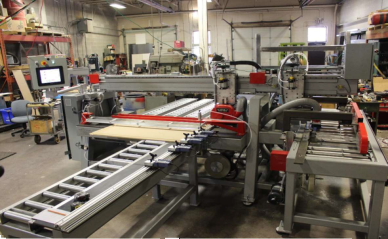

Star V SUV 1300 Universal 2 Workstation V Grooving Machine

The Ultimate Machine SUV-1300. Two machines the SCG-1300/SLG-1000 sharing a common frame. But separate controls enabling the user to operate both sides of the machine simultaneously with two operators. Machine Dimensions:150”x150”72” Service Connection Requirements: Voltage as Required (3ph), 100Psi Air, 785CFM @ 6” Dust Port, and 197CFM @ 3” Dust Port Widest / Longest Board: Unlimited Shortest Board: 20” / Thinnest Board ¼" / Thickest Board 1 3/16” (1) 10 HP – 3,600 RPM Cutter Motors Ø 30mm x 72mm Cutter Motor Shaft with clamping 8mm Keyway Built In Automatic Tape Applicator, Position control and Feed Back on 10” Touchscreen Panel 9-1/4 Cutter Head Diameter 15” Maximum Cut from Fixed Fence, Feeder Double Belt with Variable DC Motor Feed Drive 0-50 fpm. Stainless Steel Roller Bed 6” Solid Aluminum Reference Roller on Cutting Area. Cutter Depth Movements via Hand Wheel, on Linear Bearings and Rails, ACME Nut and Rod, Position on Digital Indicator Cutter side Movement via Servo, on Linear Bearings and Rails, Ball Screw and Nut Cutter Position Control and Feed Back on 10” Touchscreen Panel. Tubular welded Frame Construction.

2 Year Warranty Star V Machinery Customer Satisfaction Guarantee.

Features of SUV-1300 2 Workstation Machine Cross V Groover and Linear V Groover Cross Groove Starion Features: Narrowest Board: V Groove Center from Fence + 3” Widest / Longest Board: 48” Shortest Board: 4” / Thinnest Board 1/32" / Thickest Board 1 3/16” (1) 10 HP – 3,600 RPM Cutter Motors Ø 30mm x 72mm Cutter Motor Shaft with Clamping 8mm Keyway (1) Automatic Cross Tape Station, Position Control and Feed Back on 10” Touchscreen Panel 9-1/4 Cutter Head Diameter Servo Controlled Indexing Rear Fence from 24” Stroke Cut Speed Variable Servo 0-50 fpm Precision Machined Phenolic Table Precision Machined Phenolic Cutting Table Pneumatic Hold Down System Cutter Depth Movements via Hand Wheel, on Linear Bearings and Rails, ACME Nut and Rod, Position on Digital Indicator Cutter side Movement via Servo, on Linear Bearings and Rails, Ball Screw and Nut, Cutter Control and Speed on 10” Touchscreen Panel. Linear Groove Starion Features: Narrowest board: V Groove Center from Fence + 3.5”
